SCHNEIDER

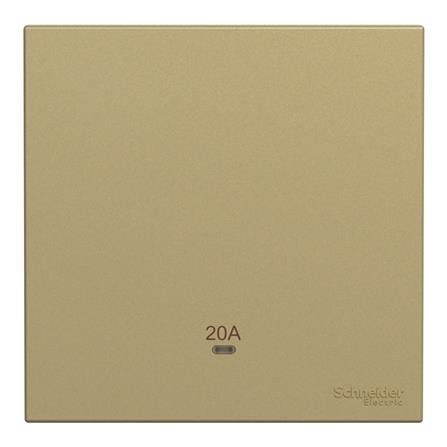

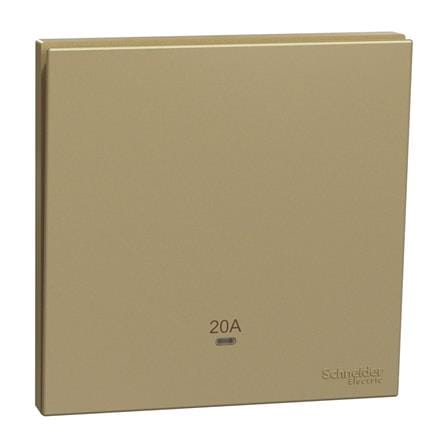

AVATARONC 20A DOUBLE POLE SWITCH E8731D20N_WG_G11 WINE GOLD

SKU: 1086566
unit: EA
59.9 RM
  • Rated current: 20 A at 250 V AC 50/60 Hz
  • Switch function: 2-pole; Number of gangs: 1 gang
  • Device mounting: Flush Surface
itemQty: 17
Quantity:
debug: itemQty = {SUMQTYBKK=17.0, UNIT=EA, SUMQTYALL=17.0, SUMQTYBASE=17.0, SUMQTYDUM=0.0, CREATEDATE=1782338111778, SUMQTYS888=0.0, STATUS=1, LASTUPDATE=1794002113552, SUMQTYDC01=0.0, MARKFORDELETE=0, SUMQTYDC02=8.0, PARTNUMBER=1086566, SUMQTYDCS=8.0}
Check Availability for Store Pick up
Promotion & Discount
Special Offers:
Product Information Specifications

AVATARONC 20A DOUBLE POLE SWITCH E8731D20N_WG_G11 WINE GOLD

The AVATARONC E8731D20N is a premium 20A 250V Double Pole Switch designed for controlling high-power electrical appliances safely and efficiently. It features a double pole mechanism that disconnects both the Live and Neutral lines simultaneously, providing enhanced electrical safety. The switch is equipped with an LED indicator that glows softly to indicate power availability, making it easy to identify the switch status. Its elegant full-flat design and durable polycarbonate (PC) construction make it suitable for modern residential and commercial interiors. The product supports both surface and flush mounting, ensuring flexible installation options.

Properties
Rated current: 20 A at 250 V AC 50/60 Hz
Switch function: 2-pole; Number of gangs: 1 gang
Device mounting: Flush Surface
Connections - terminals: Screw terminal
IP degree of protection: IP20
Local signalling: With light indicator, LED
Product Usage
Used to control and isolate high-power electrical appliances, such as water heaters, air conditioners, and kitchen appliances with a 20A load rating.
Product Tips
Ensure the connected appliance does not exceed the 20A, 250V AC rated capacity for safe and reliable operation.
For the best performance and safety, installation should be carried out in a standard wall box with all screw terminals tightened securely.
Cautions
Turn off the main power supply before installation, maintenance, or replacement of the switch.
Installation should be performed by a qualified electrician and comply with local electrical regulations.
This switch is rated IP20 and is designed for indoor use only.
Avoid exposure to water, excessive humidity, or corrosive environments.
