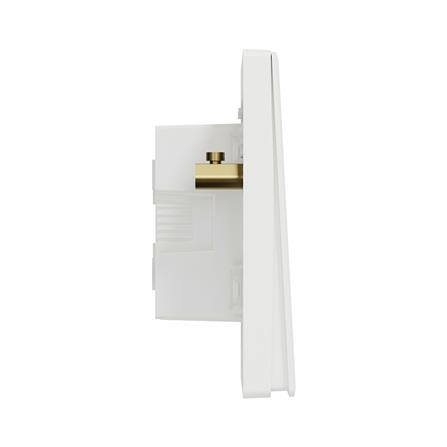

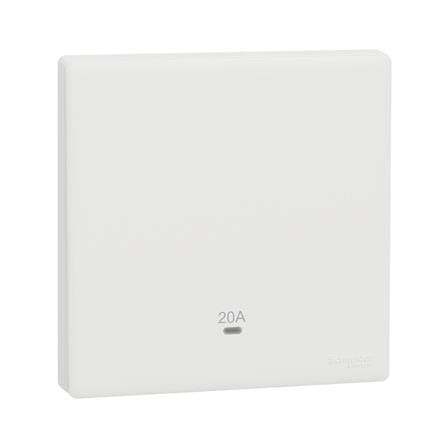

VIVACE E 20A 1 GANG 1 WAY DOUBLE POLE SWITCH WITH LED KBN31D20N_WE_G11 WHITE
Add to wishlist
HP_UNIT: EA, HP_UPC: 2100001050474
SCHNEIDER

VIVACE E 20A 1 GANG 1 WAY DOUBLE POLE SWITCH WITH LED KBN31D20N_WE_G11 WHITE

SKU: 1082839
unit: EA
24.8 RM
  • Range: Vivace E
  • Product or component type: Switch
  • Device application: Control
itemQty: 23
Quantity:
debug: itemQty = {SUMQTYBKK=23.0, UNIT=EA, SUMQTYALL=23.0, SUMQTYBASE=23.0, SUMQTYDUM=0.0, CREATEDATE=1756331711292, SUMQTYS888=0.0, STATUS=1, LASTUPDATE=1777845311587, SUMQTYDC01=0.0, MARKFORDELETE=0, SUMQTYDC02=0.0, PARTNUMBER=1082839, SUMQTYDCS=0.0}
Check Availability for Store Pick up

Promotion & Discount
Special Offers:
Product Information Specifications

VIVACE E 20A 1 GANG 1 WAY DOUBLE POLE SWITCH WITH LED KBN31D20N_WE_G11 WHITE

VIVACE E 20A 1-Gang 1-Way Double Pole Switch with LED (Model: KBN31D20N_WE_G11) is a durable, high-capacity switch designed for safely controlling high-power appliances. The built-in LED indicator helps easily locate the switch in the dark.

Elevate your space with Schneider Electric's Vivace E Double pole 1-way switch, featuring a sleek on/off rocker design. With the device's user-friendly screw terminals, the connection process is further simplified. The screw fixing mode is used to securely fasten components in place, and enhance stability and reliability in the assembly process. The rated operating voltage is 250V at 50/60Hz, with a rated current of 20A. The device is designed for seamless flush mounting, ensuring a sleek and integrated installation.

Properties
Range: Vivace E
Product or component type: Switch
Device application: Control
Switch application: On/off switching

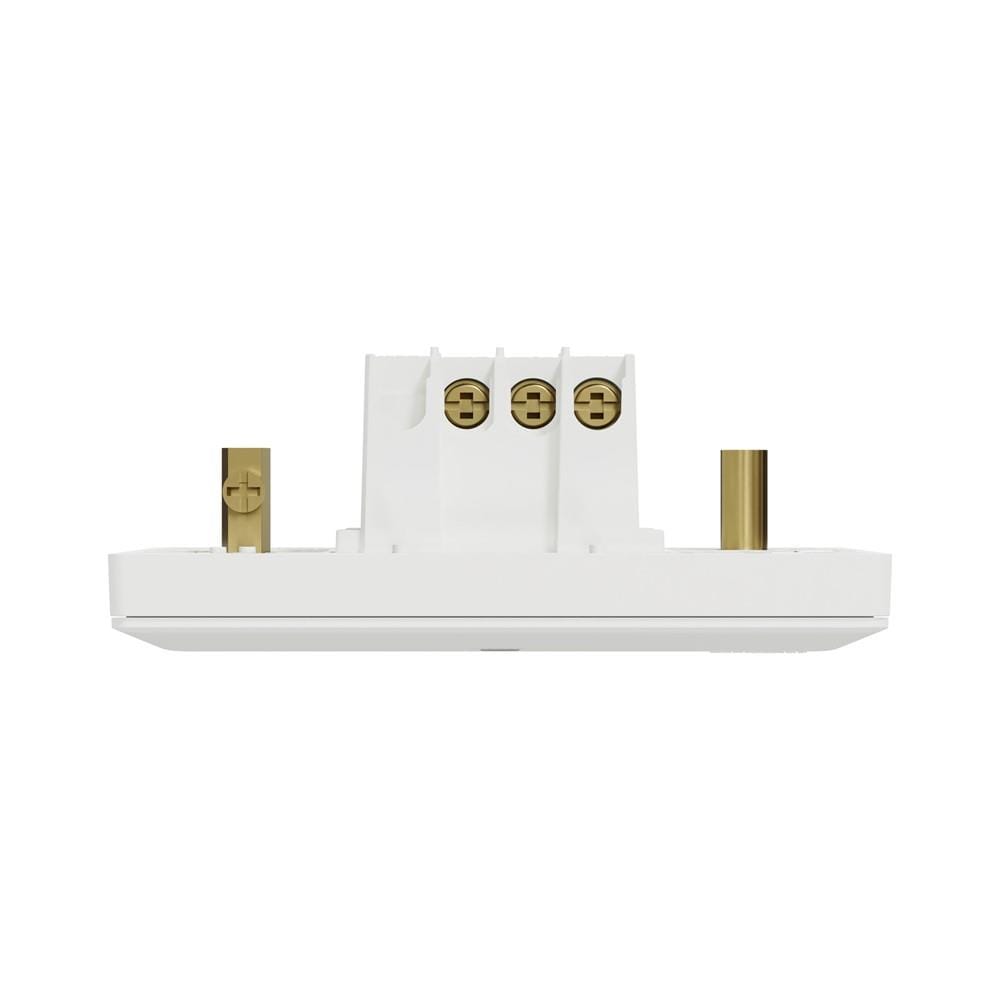

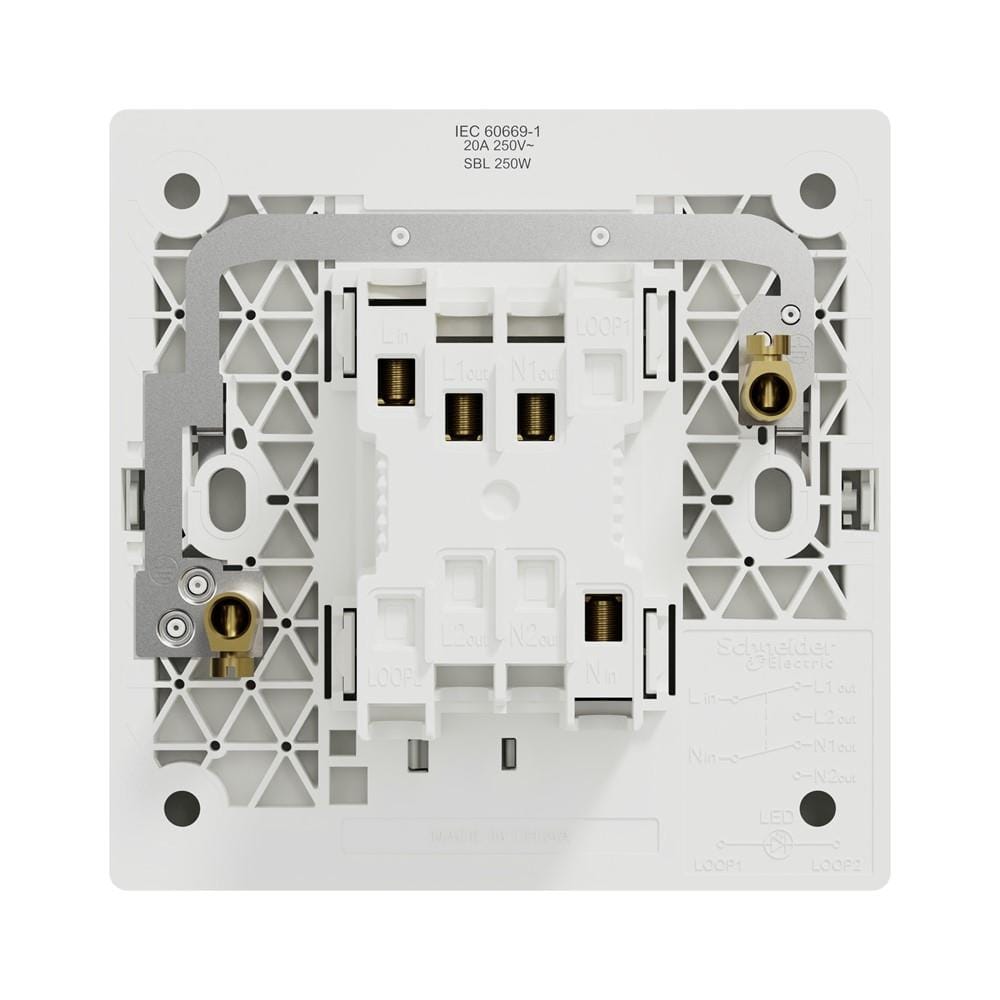

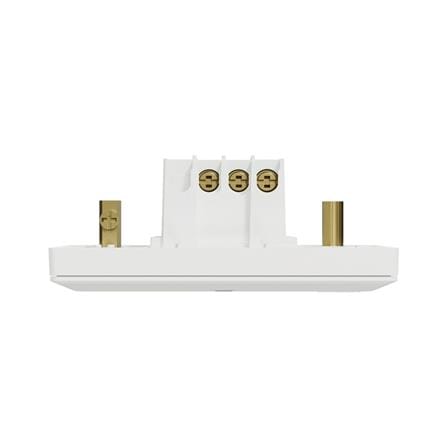

Connections - terminals: Screw terminal
Rated current: 20 A at 250 V AC 50/60 Hz
Number of gangs: 1 gang
Switch Function: 2-pole
Device mounting: Flush
Local signalling: With light indicator, LED (red)
Product Usage
Use it to control high-power devices like water heaters or air conditioners.
The LED indicator shows the switch status and helps with visibility at night.
Product Tips
Make sure the load does not exceed 20A for safe operation.
Always turn off the main circuit before installing or servicing the switch.
Cautions
Turn off the main power before installation or maintenance.
Do not exceed the 20A load capacity to prevent overheating.
Keep the switch away from moisture to avoid electrical hazards.
Do not modify or misuse the product.
Do not use any acidic-alkaline agents to clean the product.
