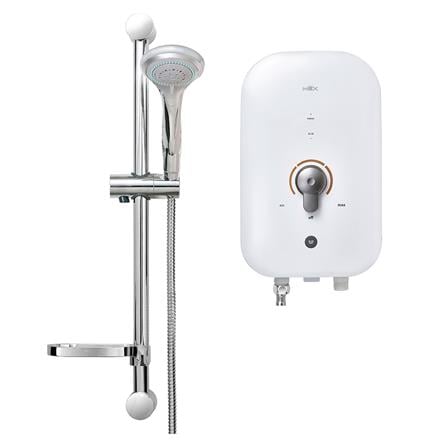

SHOWER HEATER MEX COCO 450 (MRA) 4,500W WHITE

The shower heater from MEX is ideal for installing in various styles of bathrooms. The product is made of quality materials that offers fast heating performance. The shower head comes with 3 adjustable shower patterns for versatility. Plus, the FLOW SWITH SENSOR detects the water flow precisely. It also comes with the ELCB that cuts off the power automatically when leakage is detected. This shower heater allows you to enjoy showering without any concerns.

Properties

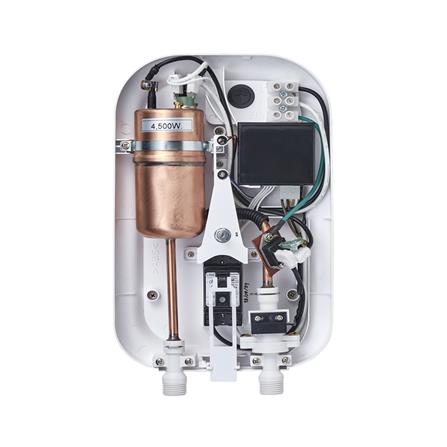

Copper boiler tank comes with thickness of 1.0mm, offers fast heating with power of 4,500W.

FLOW SWITH SENSOR detects water flow precisely

ELCB system cut off the power automatically within 0.1 second, when 15mA power leakage is detected.

Chrome-plated shower head features with 3-level adjustment for convenience.

IP25 Standard is certified for water and dust proof.

Product Usage

For using in household or workplaces.

Use with clean water only

Product Tips

Please read the instruction manual thoroughly

Install in an easily accessible area for convenient maintenance and cleaning.

Cautions

The unit must be grounded properly

Do not clean with acidic-alkaline based substances

Keep away from all source of heat and flame

Do not perform any reparation or modify the unit by yourself. Use the professional technician

Do not use with non-standard tools

Table for Warm-Hot Water Heater, Boiler Standard Installation Service Fees and Equipment

Type of Installation products	Installation Service Fee(VAT inclusive)		Standard Installation Equipment not exceeding
	New unit	Replacement of Old Unit / Relocation	VAF Electric wire	THW Ground wire	Breaker + box	Braid Stainless Steel	Metal Nipple Stainless 1/2"
	New unit		VAF Electric wire	THW Ground wire	Breaker + box	Braid Stainless Steel	Metal Nipple Stainless 1/2"
1.Warm water heater 3,000-3,800 watts	1,200	1,200	2x2.5 Sq.mm. 5 m.	1x1.5 Sq.mm. 4 m	20 Amp. 1 set	12" to 18" / 1 line	-
2.Warm water heater 3,801-6,000 watts	1,200	1,200	2x4 Sq.mm. 5 m	1x1.5 Sq.mm. 4 m	32 Amp. 1 set	12" to 18" / 1 line	-
3.Hot water heater 3,000-6,000 watts	1,200	1,200	2x4 Sq.mm. 5 m	1x1.5 Sq.mm. 4 m	32 Amp. 1 set	12" to 18" / 2 line	2 units
4.Warm water heater 6,001- 8,000 watts	1,500	1,500	2x6 Sq.mm. 5 m	1x1.5 Sq.mm. 4 m	40 Amp. 1 set	12" to 18" / 2 line	2 units
5.Water heater : Boiler	1,500	1,500	2x2.5 Sq.mm. 5 m	1x1.5 Sq.mm. 4 m	40 Amp. 1 set	12" to 18" / 2 line	2 units
6.Warm and hot water heater (no equipment)	500	500	-	-	-	-	-
7.Hot water heater : Boiler	800	800	-	-	-	-	-
8.Hot water heater in the wall	1,200	1,200	-	-	-	12" to 18" / 2 line	-
9.Warm and hot water heater + Rain shower (Jump only)	1,600	1,600	-	-	-	-	-
10.Warm and hot water heater + Rain shower (Electric wiring installation)	2,300	2,300	2x4 Sq.mm. 5 m	1x1.5 Sq.mm. 4 m	32 Amp. 1 set	12" to 18" / 2 line	2 units

Service Conditions

1.Terms on Installation

In case of having an installation on any glass block, mirror, metal,wooden furniture, and any kind of stone, there will be a cost for extra installation equipment from the standard as indicated in the Extra Installation Equipment Price List.
In case of drilling a plastered ceiling, the company will drill at the area related to an installation (exclusive of paint and ceiling repair)
Working site must be a flat surface of 2-3 square meter with a height from floor to the machine not higher than 3 meters.
In case that the height from floor to the machine is higher than 3 meters, the customer must provide scaffold for installation.
In case that the installation cannot be made because the customer does not prepare installation site or does not postpone the installation appointment 2 days in advance, the company will charge travelling cost of 300 Baht/ trip.

2.Terms on Installation Equipment

Electric wiring and water piping will be exposed.
For standard installation equipment, the company will provide for actual usage only.
The company reserves the right not to deliver those unused equipment and neither to exchange nor refund in cash or discount.
In case the customer purchases extra installation equipment himself, the company will charge labor cost at 50% of the extra installation equipment cost.
** No labor cost charge in case of using extra installation equipment which is given together with the products. The above cost of extra installation equipment is inclusive of VAT.

3.Installation Warranty

Warranty is provided after installation for 180 days and is responsible for actual damage due to installation service but not exceeding 2 times of standard installation service fee of Home Pro.
The company reserves the right not to accept any exchange or return of products which have already been installed.
In case the customer needs relocation or re-installation of old unit, the labor fee will be charged as indicated in the service fee table.
The company will not responsible for any damage which occurs from:
* The customer hires other person to install or repair the installation work made by the company.

* The Customer hires or engages technician of the company to work beyond the scope of service as indicated in the job sheet, without an engagement through the company. If the customer is interested in using any additional service, please contact Special Service Counter or Service Center at Tel.1284

4.Service Area

Service radiance is as follows:

Bangkok Branches cover Bangkok and Metropolitan Bangkok.

Rungsit Branch :up to Klong 10, Amphoe Banhpra-in, Wongnoi.
Rattanathibej Branch :up to Nobprawong section.
Phetkrasem Branch :PuttamonthonSai 7.
Rama2 Branch :up to Prasamutjaedee, Pomprajul, Mahachaimuangmai.
Suvarnabhumi Branch :up to Samutprakarn Clock Tower, Crocodile Farm, Bangna-Trad km.30, Bangplee Housing.
Fashion Island Branch :up to Hua-TakayBridge, Suwintawong, Nongjok.

*Upcountry Branches

Free of charge for the first 30 kms. From the branch.
15 Baht/km for the following 31^stkms.-100^thkms
Lump Sum service charge if exceeding 101 kms.

** The company reserves the right to change service fee and conditions without prior notice.

Extra Installation Equipment Price List
List of equipment	Unit	Equipment price+ Labor cost INC VAT.
1.VAF Electricity Wire 2x2.5 Sq.mm.	meter	30.-
2.VAF Electricity Wire 2x4 Sq.mm.	meter	50.-
3.VAF Electricity Wire 2x6 Sq.mm.	meter	70.-
4.VAF Electricity Wire 2x10 Sq.mm.	meter	90.-
5.THW Ground Wire 1.5 Sq.mm.	meter	10.-
6.Three-pin plug+ box	set	200.-
7.Braid Stainless Steel size 12" to 18"	line	150.-
8.Braid Stainless Steel size 32"	line	280.-
9.Ball valve	unit	120.-
10.Breaker +box	set	150.-
11.Reside current circuit breaker with overload protection + box	set	480.-
12.Circuit Breaker 30 Amp.	units	300.-
13.Metal Nipple Stainless size 1/2"	units	70.-
14.covered spout for electric wiring #4 Plastic	meter	70.-
15.ROD size 30 cm. (excluding electric wire)	point	200.-
16.Gouge, drilling, ceiling repair (excluding painting)	point	300.-
17.Installation of electric system size 2x4 sq.mm.	meter	120.-
18.Installation of electric system size 2x4 sq.mm.	meter	140.-
19.Installation of electric system size 2x6 sq.mm.	meter	160.-
20.PPR Pipe 1/2"	meter	150.-
21.PPR Pipe 3/4"	meter	200.-
22.PPR Pipe 1"	meter	250.-
23.PPR pipe Connector 1/2" ,3/4" ,1"	unit	60.-
24.PPR pipe Connector 1/2"(Threaded)	unit	200.-
25.PPR pipe Connector 3/4"(Threaded)	unit	250.-
26.PPR pipe Connector 1"(Threaded)	unit	350.-
27.Ceiling Repair Work	square metre	1,000.-
28.Ground Wiring THW 1.5 Sqmm	meter	100.-
29.PVC duct size 3/8"- 3/4" white	meter	70.-
30. In case the customer purchases extra installation equipment himself, charge for labor cost	50% of the Equipment Price + Labor Cost

The company has a procedure to confirm appointment and survey customer satisfaction in using the service in order to improve service quality. Therefore, there may be more than one contact to the customer.

xxxx
Brand	MEX
Color	WHITE
Width (cm)	21.1
Height (cm)	35.6
Depth (cm)	7.4
Weight (kg)	1.5
ColorGroup	WHITE
WATT RANGE	4500
HEATING MATERIAL	COPPER BOILER
MANUAL/DIGITAL	MANUAL
{}	YES
