Name: CHIMNEY HOOD AXIA CUBIC60 60CM
Brand: AXIA
SKU: 1165248
Price: 8990.00 MYR
Availability: InStock

CHIMNEY HOOD AXIA CUBIC60 60CM

You can enjoy home cooking with the chimney hood from AXIA. The hood comes with maximum extraction rate of 1,200 cu.m/hr, 3 fan speeds, Aluminum grease filter and LED lights for user’s convenience. It is made of high-quality stainless steel material for durability and easy maintenance. The hood helps you keep the kitchen free of steam, grease, cooking fumes and odors so that you cook without worrying about unpleasant smoke or odors.

Properties

Maximum extraction rate: 1,200 cu.m/hr

High-quality Stainless steel material for easy maintenance

3 Speed levels

Normal Turbo Motor with grease cup

2 x Aluminum grease filters

2 LED lights for better visibility

6” air vent

Extraction system installation

Product Usage

For evacuating airborne grease, combustion products, fumes, smoke, and odors from cooking.

For household use.

Product Tips

For extraction installation only.

Compatible with 6” vent.

Cautions

Always turn on the hood every cooking.

Install at proper height for each hob.

For extraction installation only.

Install ground wire for your safety.

Regularly clean the filter for your hygiene.

Clean the filter with grease remover.

Turn off the appliance before cleaning.

Do not manually adjust the hood. Removal and repair must be made by a qualified technician.

Install a proper circuit breaker for the appliance power.

If the machine is faulty, stop using and contact the service center.

Table of Cooker Hood Standard Installation Service Fees and Equipment

Type of Installed product	Installation fee including VAT.		Standard equipment for installation not over
Type of Installed product	New	Old/Remove	VAF Yazaki Electric wire	THW Yazaki ground wire	Aluminum Flex pipe(wrikle)	Metal leg Support	German plug (plug socket)	Equipment for wall checking	Punchimg a hole (cement wall)
1.Cooker hood, slim model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
2.Cooker hood,slim model (attaching with a pipe out of the building)	1400.-	1400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
3.Cooker hood,tent model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
4.Cooker hood,tent model (attaching with a pipe out of the building)	1,400.-	1,400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
5.Cooker hood,tent in themiddlr of room model	3,200.-	3,200.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	1 set	1	1	1 hole 5-6"

Service Conditions

1. Terms on Installation

In case of having an installation on any glass block, mirror, metal,wooden furniture, and any kind of stone, there will be a cost for extra installation equipment from the standard as indicated in the Extra Installation Equipment Price List.
In case of drilling a plastered ceiling, the company will drill at the area related to an installation (exclusive of paint and ceiling repair)
Working site must be a flat surface of 2-3 square meter with a height from floor to the machine not higher than 3 meters.
In case that the height from floor to the machine is higher than 3 meters, the customer must provide scaffold for installation.
In case that the installation cannot be made because the customer does not prepare installation site or does not postpone the installation appointment 2 days in advance, the company will charge travelling cost of 300 Baht/ trip.

2. Terms on Installation Equipment

Electric wiring and water piping will be exposed.
For standard installation equipment, the company will provide for actual usage only.
The company reserves the right not to deliver those unused equipment and neither to exchange nor refund in cash or discount.
In case the customer purchases extra installation equipment himself, the company will charge labor cost at 50% of the extra installation equipment cost.
** ** No labor cost charge in case of using extra installation equipment which is given together with the products. The above cost of extra installation equipment is inclusive of VAT.

3. Installation Warranty

Warranty is provided after installation for 180 days and is responsible for actual damage due to installation service but not exceeding 2 times of standard installation service fee of Home Pro.
The company reserves the right not to accept any exchange or return of products which have already been installed.
In case the customer needs relocation or re-installation of old unit, the labor fee will be charged as indicated in the service fee table.
The company will not responsible for any damage which occurs from:
* The customer hires other person to install or repair the installation work made by the company.
* The Customer hires or engages technician of the company to work beyond the scope of service as indicated in the job sheet, without an engagement through the company. If the customer is interested in using any additional service, please contact Special Service Counter or Service Center at Tel 1284.

4. Service Area

Service radiance is as follows:

* Bangkok Branches cover Bangkok and Metropolitan Bangkok.

Rungsit Branch :up to Klong 10, Amphoe Banhpra-in, Wongnoi.
Rattanathibej Branch :up to Nobprawong section.
Phetkrasem Branch :PuttamonthonSai 7.
Suvarnabhumi Branch :up to Samutprakarn Clock Tower, Crocodile Farm, Bangna-Trad km.30, Bangplee Housing.
Fashion Island Branch :up to Hua-TakayBridge, Suwintawong, Nongjok.
Rama2 Branch :up to Prasamutjaedee, Pomprajul, Mahachaimuangmai.

* Upcountry Branches

Free of charge for the first 30 kms. From the branch.
15 Baht/km for the following 31^stkms.-100^thkms.
Lump Sum service charge if exceeding 101 kms.

** The company reserves the right to change service fee and conditions without prior notice.

Extra Installation Equipment Price List
List of equipment	Unit	Equipment price+ Service Fee INC VAT.
1.Electric wire YAZAKI VAF 2x2.5 Sqmm.	meter	30.-
2.Ground line YAZAKI THW 1.5 Sqmm.	meter	10.-
3.German plug (plug socket)	piece	200.-
4.Aluminum Flex pipe (wrinkle) 4",5",6"	meter	200.-
5.Insert killer trap 4",5",6"	piece	800.-
6.Electric wire Covering rail #4 plastic	meter	70.-
7.Wall clecking equiment 6" (adding from its standard)	piece	100.-
8.groung (ROD) 30 cm.(not including electric wire)	point	200.-
9.Carving, punching, and wall checking(not including, color checking)	meter	300.-
10.PVC pipe 3/8"-3/4" white color	meter	70.-
11.In case the customer purchases extra installation equipment himself, charge for labor cost	50% of the Equipment Price + Labor Cost

The company has a procedure to confirm appointment and survey customer satisfaction in using the service in order to improve service quality. Therefore, there may be more than one contact to the customer.

xxxx
Brand	AXIA
Material	STAINLESS STEEL

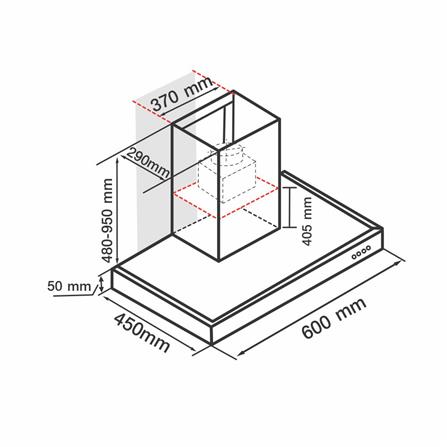

Width (cm)	60
Height (cm)	90
Depth (cm)	45
Weight (kg)	19
HIGHEST SUCTION POWER	1200
Pan Support Material	0
{}	WALL-MOUNTED
{}	DUCTED
{}	60
