CHIMNEY HOOD MEX K638BFX90 90CM

Say no to unpleasant smells and smoke when cooking with the 90cm chimney hood from MEX. The body is made of high-quality stainless steel, offering easy maintenance. It has the 1,300 cu.m/h suction power in which you can adjust it with 4 speed settings. Besides, it comes with automatic shut-off timer at 3 and 7 minutes. Additionally, a stainless steel oil cup in the hood can be detached for easy cleaning. Thanks to the 2 LED lights which help lighten your hob to provide better visibility, you are able to spend your time cooking with this hood without any regret.

Properties

This hood is made of high-quality stainless steel, durable and easy to clean.

Maximum extraction rate: 1,180m3/h controlled by a touch screen

380W Aluminum alloy motor with metal propeller

Power off timer: 3 and 7 minutes

4-Speed fan settings

3-layer Honey Comb Stainless Steel Baffle grease filter

Stainless steel long oil tray, easy to clean.

2 LED lights (1W)

Product Usage

For smell and smoke suction.

Measure the size before installation.

Product Tips

Please read manual instructions before use.

Measure the size before installation.

Cautions

Must be installed by technicians only.

Abide by the instructions.

Must be installed with respect to the appropriate distance between the hob and the hood.

Do not modify the product.

Table of Cooker Hood Standard Installation Service Fees and Equipment

Type of Installed product	Installation fee including VAT.		Standard equipment for installation not over
Type of Installed product	New	Old/Remove	VAF Yazaki Electric wire	THW Yazaki ground wire	Aluminum Flex pipe(wrikle)	Metal leg Support	German plug (plug socket)	Equipment for wall checking	Punchimg a hole (cement wall)
1.Cooker hood, slim model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
2.Cooker hood,slim model (attaching with a pipe out of the building)	1400.-	1400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
3.Cooker hood,tent model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
4.Cooker hood,tent model (attaching with a pipe out of the building)	1,400.-	1,400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
5.Cooker hood,tent in themiddlr of room model	3,200.-	3,200.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	1 set	1	1	1 hole 5-6"

Service Conditions

1. Terms on Installation

In case of having an installation on any glass block, mirror, metal,wooden furniture, and any kind of stone, there will be a cost for extra installation equipment from the standard as indicated in the Extra Installation Equipment Price List.
In case of drilling a plastered ceiling, the company will drill at the area related to an installation (exclusive of paint and ceiling repair)
Working site must be a flat surface of 2-3 square meter with a height from floor to the machine not higher than 3 meters.
In case that the height from floor to the machine is higher than 3 meters, the customer must provide scaffold for installation.
In case that the installation cannot be made because the customer does not prepare installation site or does not postpone the installation appointment 2 days in advance, the company will charge travelling cost of 300 Baht/ trip.

2. Terms on Installation Equipment

Electric wiring and water piping will be exposed.
For standard installation equipment, the company will provide for actual usage only.
The company reserves the right not to deliver those unused equipment and neither to exchange nor refund in cash or discount.
In case the customer purchases extra installation equipment himself, the company will charge labor cost at 50% of the extra installation equipment cost.
** ** No labor cost charge in case of using extra installation equipment which is given together with the products. The above cost of extra installation equipment is inclusive of VAT.

3. Installation Warranty

Warranty is provided after installation for 180 days and is responsible for actual damage due to installation service but not exceeding 2 times of standard installation service fee of Home Pro.
The company reserves the right not to accept any exchange or return of products which have already been installed.
In case the customer needs relocation or re-installation of old unit, the labor fee will be charged as indicated in the service fee table.
The company will not responsible for any damage which occurs from:
* The customer hires other person to install or repair the installation work made by the company.
* The Customer hires or engages technician of the company to work beyond the scope of service as indicated in the job sheet, without an engagement through the company. If the customer is interested in using any additional service, please contact Special Service Counter or Service Center at Tel 1284.

4. Service Area

Service radiance is as follows:

* Bangkok Branches cover Bangkok and Metropolitan Bangkok.

Rungsit Branch :up to Klong 10, Amphoe Banhpra-in, Wongnoi.
Rattanathibej Branch :up to Nobprawong section.
Phetkrasem Branch :PuttamonthonSai 7.
Suvarnabhumi Branch :up to Samutprakarn Clock Tower, Crocodile Farm, Bangna-Trad km.30, Bangplee Housing.
Fashion Island Branch :up to Hua-TakayBridge, Suwintawong, Nongjok.
Rama2 Branch :up to Prasamutjaedee, Pomprajul, Mahachaimuangmai.

* Upcountry Branches

Free of charge for the first 30 kms. From the branch.
15 Baht/km for the following 31^stkms.-100^thkms.
Lump Sum service charge if exceeding 101 kms.

** The company reserves the right to change service fee and conditions without prior notice.

Extra Installation Equipment Price List
List of equipment	Unit	Equipment price+ Service Fee INC VAT.
1.Electric wire YAZAKI VAF 2x2.5 Sqmm.	meter	30.-
2.Ground line YAZAKI THW 1.5 Sqmm.	meter	10.-
3.German plug (plug socket)	piece	200.-
4.Aluminum Flex pipe (wrinkle) 4",5",6"	meter	200.-
5.Insert killer trap 4",5",6"	piece	800.-
6.Electric wire Covering rail #4 plastic	meter	70.-
7.Wall clecking equiment 6" (adding from its standard)	piece	100.-
8.groung (ROD) 30 cm.(not including electric wire)	point	200.-
9.Carving, punching, and wall checking(not including, color checking)	meter	300.-
10.PVC pipe 3/8"-3/4" white color	meter	70.-
11.In case the customer purchases extra installation equipment himself, charge for labor cost	50% of the Equipment Price + Labor Cost

The company has a procedure to confirm appointment and survey customer satisfaction in using the service in order to improve service quality. Therefore, there may be more than one contact to the customer.

xxxx
Brand	MEX
Material	STAINLESS STEEL

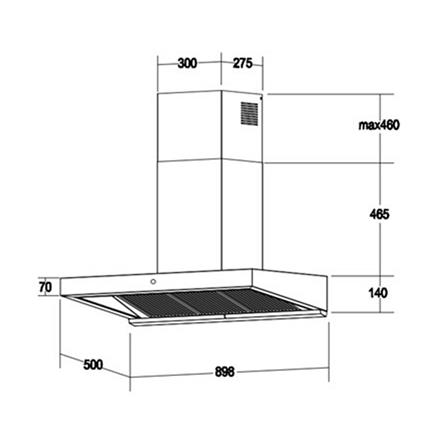

Width (cm)	90
Height (cm)	80
Depth (cm)	50
Weight (kg)	26.5
HIGHEST SUCTION POWER	1188
Pan Support Material	0
{}	WALL-MOUNTED
{}	DUCTED
{}	90
