Electrical Circuit Breakers & Breaker Panels Circuit Breakers Circuit Breakers
SCHNEIDER MINIATURE CIRCUIT BREAKER 3 POLE 40A C CURVE EZ9F56340
Add to wishlist
HP_UNIT: EA, HP_UPC: 2100000651856
SCHNEIDER

SCHNEIDER MINIATURE CIRCUIT BREAKER 3 POLE 40A C CURVE EZ9F56340

SKU: 1048018
unit: EA
112 RM
  • Combine short-circuit and overload currents protection
  • Suitability for residential isolation according to IEC 60898-1 standard
  • Easy to install with unified terminal design and wiring indication
itemQty: 5
Quantity:
debug: itemQty = {SUMQTYBKK=5.0, UNIT=EA, SUMQTYALL=8.0, SUMQTYBASE=5.0, SUMQTYDUM=0.0, CREATEDATE=1657165989416, SUMQTYS888=0.0, STATUS=1, LASTUPDATE=1745963706487, SUMQTYDC01=0.0, MARKFORDELETE=0, SUMQTYDC02=2.0, PARTNUMBER=1048018, SUMQTYDCS=2.0}
Check Availability for Store Pick up

Promotion & Discount
Special Offers:
Product Information Specifications

SCHNEIDER MINIATURE CIRCUIT BREAKER 3 POLE 40A C CURVE EZ9F56340

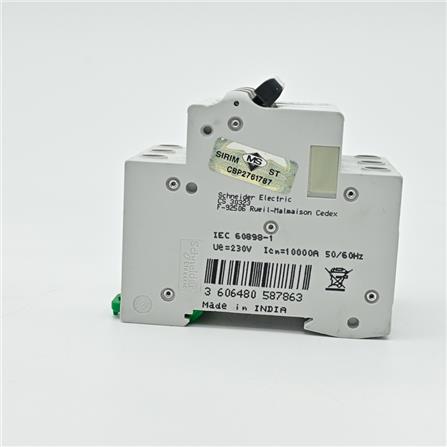

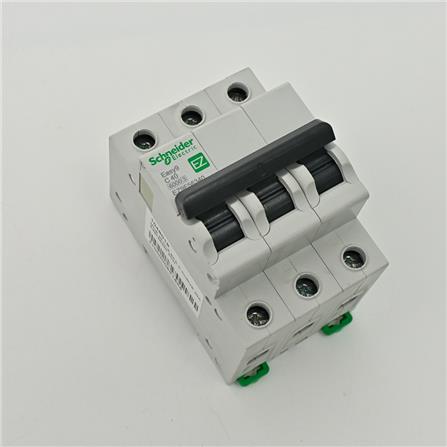

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings.

Properties
Combine short-circuit and overload currents protection
Suitability for residential isolation according to IEC 60898-1 standard
Easy to install with unified terminal design and wiring indication
Compliant with global RoHS/Reach regulation to protect your family and environment
Poles: 3P
[In] rated current: 40 A
Trip unit technology: Thermal-magnetic
Curve code: C
Product Usage
Is primarily used for protecting electrical circuits from overcurrent conditions, such as overloads and short circuits.
It is commonly used in electrical distribution panels and consumer units.
Product Tips
Always ensure that the 40A rating of the MCB is suitable for the specific circuit it is protecting.
It should be mounted securely in the electrical panel and connected properly to ensure reliable protection.
Cautions
The MCB should only be installed by a certified electrician to ensure it is properly wired and meets safety standards.
Never exceed the 40A rating of the circuit breaker.
If any issues are detected, the breaker should be replaced or repaired immediately to maintain effective protection.
Keep away from all sources of heat and flame.
Keep in a dry place and out of reach of children.
