SCHNEIDER

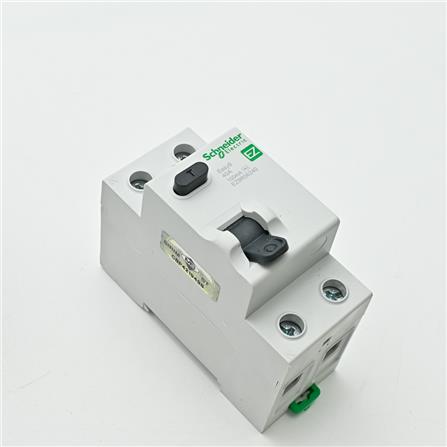

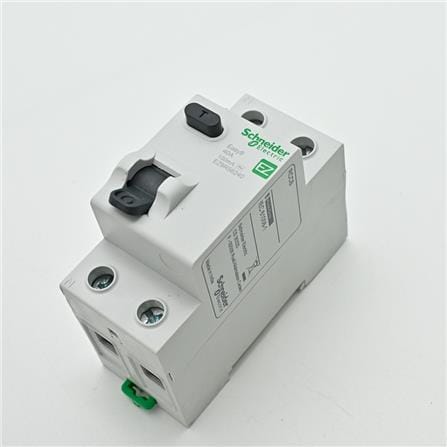

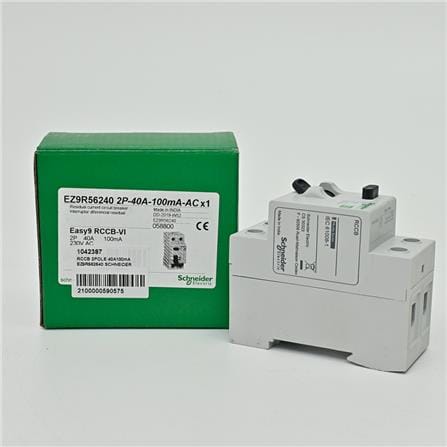

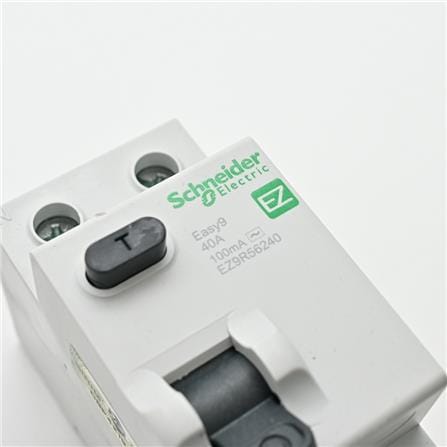

RCCB 2POLE 40A100mA EZ9R562640 SCHNEIDER

SKU: 1042387
unit: EA
105 RM
79.9 RM
  • Residual current circuit breaker (RCCB)
  • Neutral position : Left
  • [In] rated current : 40 A
itemQty: 11
Quantity:
debug: itemQty = {SUMQTYBKK=11.0, UNIT=EA, SUMQTYALL=11.0, SUMQTYBASE=11.0, SUMQTYDUM=0.0, CREATEDATE=1657165989305, SUMQTYS888=0.0, STATUS=1, LASTUPDATE=1715637306248, SUMQTYDC01=0.0, MARKFORDELETE=0, SUMQTYDC02=3.0, PARTNUMBER=1042387, SUMQTYDCS=3.0}
Check Availability for Store Pick up
Promotion & Discount
Special Offers:
Product Information Specifications

RCCB 2POLE 40A100mA EZ9R562640 SCHNEIDER

This product is a Easy9 residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, a sensitivity of 100mA with a AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. It also has protection against fire hazards due to persistent earth fault current. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved). This is dedicated for residential and small commercial buildings market segment. This product is compliant with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) conditional rated short circuit current is 6000A. The mechanical endurance is going up to 5000 cycles and electrical endurance going up to 2000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 82mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.

Properties
Residual current circuit breaker (RCCB)
Neutral position : Left
[In] rated current : 40 A
Earth-leakage sensitivity : 100 mA
Earth-leakage protection time delay : Instantaneous
Rated breaking and making capacity : 500 A
Network frequency : 50/60 Hz
[Ue] rated operational voltage : 230 V AC 50/60 Hz
Product Usage
Install with a C-UNIT to control the whole electrical panel or branch circuit breakers.
The breaker should be switched off every time after use.
Product Tips
Please read the instructions carefully.
Choose the right size and type to suit specific use.
Cautions
Do not modify or misuse the product.
Do not use any acidic-alkaline agents to clean the product.
Keep out of reach of children and away from all sources of heat and dampness.
Keep out of reach of children and pets.
Be cautious of current leakage or electric shock if wrongly installed.
