SCHNEIDER

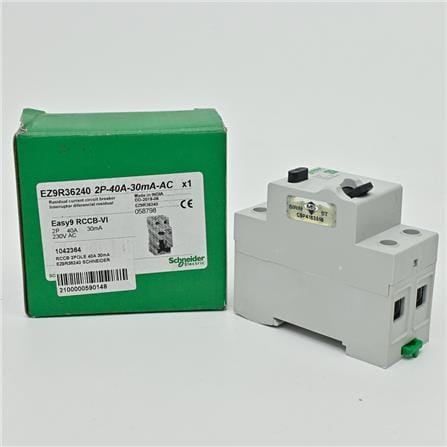

RCCB 2POLE 40A 30mA EZ9R36240 SCHNEIDER

SKU: 1042364
unit: EA
114.9 RM
109 RM
  • Residual current circuit breaker (RCCB)
  • Neutral position : Left
  • [In] rated current : 40 A
itemQty: 8
Quantity:
debug: itemQty = {SUMQTYBKK=8.0, UNIT=EA, SUMQTYALL=10.0, SUMQTYBASE=8.0, SUMQTYDUM=0.0, CREATEDATE=1657165989305, SUMQTYS888=0.0, STATUS=1, LASTUPDATE=1715637306248, SUMQTYDC01=0.0, MARKFORDELETE=0, SUMQTYDC02=4.0, PARTNUMBER=1042364, SUMQTYDCS=4.0}
Check Availability for Store Pick up
Promotion & Discount
Special Offers:
Product Information Specifications

RCCB 2POLE 40A 30mA EZ9R36240 SCHNEIDER

This Easy9 product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It also has protection against fire hazards due to persistent earth fault current. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved). This is dedicated for residential and small commercial buildings market segment. This product is compliant with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) conditional rated short circuit current is 6000A. It has an electrical endurance going up to 2000 cycles and a mechanical endurance going up to 5000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 82mm x (D) 72mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.

Properties
Residual current circuit breaker (RCCB)
Neutral position : Left
[In] rated current : 40 A
Earth-leakage sensitivity : 30 mA
Earth-leakage protection time delay : Instantaneous
[Ue] rated operational voltage : 230 V AC 50/60 Hz
Electrical durability AC : 2000 cycles 230 V AC 50/60 Hz
Product Usage
For installing with a breaker box to prevent hazards from electric shock or leakage.
Product Tips
Please read the instruction manual carefully before use.
The breaker should be installed by a qualified electrician.
Cautions
Do not misuse or modify the product.
Keep away from all sources of flame and damp areas.
Power should be terminated prior to installation or inspection.
Keep away from all sources of heat and flame
Be cautious of current leakage or electric shock if wrongly installed.
