Name: CHIMNEY HOOD FOTILE JQG9031 90CM
Brand: FOTILE
SKU: 1158324
Price: 23900.00 MYR
Availability: InStock

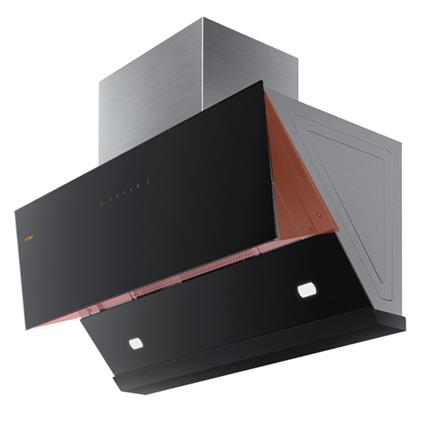

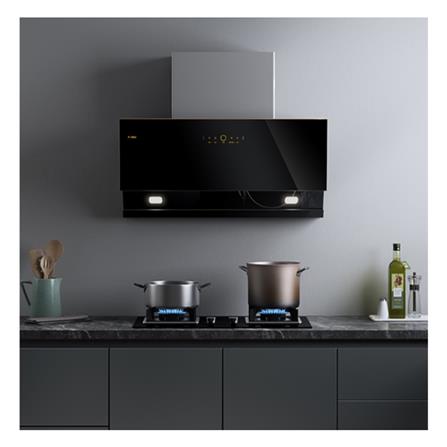

CHIMNEY HOOD FOTILE JQG9031 90CM

You can enjoy home cooking with the chimney hood from FOTILE. The Intelligent Air Management automatically detects harmful gases in the air before ventilating and purifying the air to keep your kitchen fresh, even when you’re not cooking or in the kitchen. The hood comes with maximum extraction rate of 1,520 cu.m/hr, and 3 fan speeds for your convenience. The hood helps you keep the kitchen free of steam, grease, cooking fumes and odors so that you cook without worrying about unpleasant smoke or odors.

Properties

Extraction rate: 1,520 cu.m/hr.

Tempered glass, high-heat resistant

3-Speed adjustment

Motor power: 358W

Stir-fry mode increases extraction power continuously 180 sec.

Noise level: 43 dB

Smart sensor detects hand waving motion to switch on/off

10-Year Motor warranty

Product Usage

For evacuating airborne grease, combustion products, fumes, smoke, and odors from cooking.

Please measure the product dimension before installation.

Product Tips

Please read and follow the manual.

Install at proper height for each hob.

Cautions

Should be installed by professional technicians.

Please follow the installation instructions.

Install at proper height for each hob.

Do not modify the hood.

Table of Cooker Hood Standard Installation Service Fees and Equipment

Type of Installed product	Installation fee including VAT.		Standard equipment for installation not over
Type of Installed product	New	Old/Remove	VAF Yazaki Electric wire	THW Yazaki ground wire	Aluminum Flex pipe(wrikle)	Metal leg Support	German plug (plug socket)	Equipment for wall checking	Punchimg a hole (cement wall)
1.Cooker hood, slim model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
2.Cooker hood,slim model (attaching with a pipe out of the building)	1400.-	1400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
3.Cooker hood,tent model (cirulatr)	800.-	800.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	-	-	1	-	-
4.Cooker hood,tent model (attaching with a pipe out of the building)	1,400.-	1,400.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	-	1	1	1 hole 5-6"
5.Cooker hood,tent in themiddlr of room model	3,200.-	3,200.-	2x2.5 Sq.mm. 8m.	1x1.5 Sq.mm. 4m.	1 m.	1 set	1	1	1 hole 5-6"

Service Conditions

1. Terms on Installation

In case of having an installation on any glass block, mirror, metal,wooden furniture, and any kind of stone, there will be a cost for extra installation equipment from the standard as indicated in the Extra Installation Equipment Price List.
In case of drilling a plastered ceiling, the company will drill at the area related to an installation (exclusive of paint and ceiling repair)
Working site must be a flat surface of 2-3 square meter with a height from floor to the machine not higher than 3 meters.
In case that the height from floor to the machine is higher than 3 meters, the customer must provide scaffold for installation.
In case that the installation cannot be made because the customer does not prepare installation site or does not postpone the installation appointment 2 days in advance, the company will charge travelling cost of 300 Baht/ trip.

2. Terms on Installation Equipment

Electric wiring and water piping will be exposed.
For standard installation equipment, the company will provide for actual usage only.
The company reserves the right not to deliver those unused equipment and neither to exchange nor refund in cash or discount.
In case the customer purchases extra installation equipment himself, the company will charge labor cost at 50% of the extra installation equipment cost.
** ** No labor cost charge in case of using extra installation equipment which is given together with the products. The above cost of extra installation equipment is inclusive of VAT.

3. Installation Warranty

Warranty is provided after installation for 180 days and is responsible for actual damage due to installation service but not exceeding 2 times of standard installation service fee of Home Pro.
The company reserves the right not to accept any exchange or return of products which have already been installed.
In case the customer needs relocation or re-installation of old unit, the labor fee will be charged as indicated in the service fee table.
The company will not responsible for any damage which occurs from:
* The customer hires other person to install or repair the installation work made by the company.
* The Customer hires or engages technician of the company to work beyond the scope of service as indicated in the job sheet, without an engagement through the company. If the customer is interested in using any additional service, please contact Special Service Counter or Service Center at Tel 1284.

4. Service Area

Service radiance is as follows:

* Bangkok Branches cover Bangkok and Metropolitan Bangkok.

Rungsit Branch :up to Klong 10, Amphoe Banhpra-in, Wongnoi.
Rattanathibej Branch :up to Nobprawong section.
Phetkrasem Branch :PuttamonthonSai 7.
Suvarnabhumi Branch :up to Samutprakarn Clock Tower, Crocodile Farm, Bangna-Trad km.30, Bangplee Housing.
Fashion Island Branch :up to Hua-TakayBridge, Suwintawong, Nongjok.
Rama2 Branch :up to Prasamutjaedee, Pomprajul, Mahachaimuangmai.

* Upcountry Branches

Free of charge for the first 30 kms. From the branch.
15 Baht/km for the following 31^stkms.-100^thkms.
Lump Sum service charge if exceeding 101 kms.

** The company reserves the right to change service fee and conditions without prior notice.

Extra Installation Equipment Price List
List of equipment	Unit	Equipment price+ Service Fee INC VAT.
1.Electric wire YAZAKI VAF 2x2.5 Sqmm.	meter	30.-
2.Ground line YAZAKI THW 1.5 Sqmm.	meter	10.-
3.German plug (plug socket)	piece	200.-
4.Aluminum Flex pipe (wrinkle) 4",5",6"	meter	200.-
5.Insert killer trap 4",5",6"	piece	800.-
6.Electric wire Covering rail #4 plastic	meter	70.-
7.Wall clecking equiment 6" (adding from its standard)	piece	100.-
8.groung (ROD) 30 cm.(not including electric wire)	point	200.-
9.Carving, punching, and wall checking(not including, color checking)	meter	300.-
10.PVC pipe 3/8"-3/4" white color	meter	70.-
11.In case the customer purchases extra installation equipment himself, charge for labor cost	50% of the Equipment Price + Labor Cost

The company has a procedure to confirm appointment and survey customer satisfaction in using the service in order to improve service quality. Therefore, there may be more than one contact to the customer.

xxxx
Brand	FOTILE
Material	MIRROR
Width (cm)	90
Height (cm)	80
Depth (cm)	50
Weight (kg)	29.2
HIGHEST SUCTION POWER	1520
Pan Support Material	0
{}	WALL-MOUNTED
{}	DUCTED
{}	90
