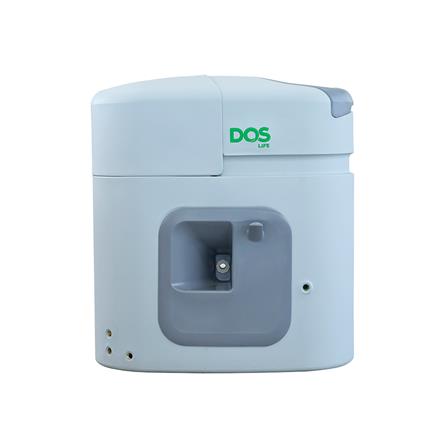

WATER TANK DOS WTP PRO 1500L GRAY+WATER PUMP SCALA2

This water tank from DOS is ideal for storing water for household consumption. The tank comes with Plug & Play concept to provide convenient use. Plus, it comes in a stylish design and features an automatic pump, making it suitable for installing in any areas with limited space.

Properties

Tank is made from Polymer Elixir Food Grade that is certified by SCG.

Dos Silver Combac Anti-Microbial prevents bacteria and microorganisms for 99.99%.

UV STABILIZER comes with UV20 protection and weather resistant.

Support maximum water capacity up to 1500 liters.

Certified FDA standard (Food and Drug Administration) from USA.

25-Years tank warranty (subject to terms and conditions).

Product Usage

For storing water with the temperature of 45 degrees Celsius only.

Product Tips

Installation area must be sturdy surface and able to support weight of water and tank.

Should clean the tank at least once a year.

Cautions

Do not clean with abrasive objects and acidity-alkaline based substances.

Do not modify or misuse.

Do not store chemical agents.

Do not open the cover to prevent insects and contaminants.

Avoid any impact and sharp tools.

The tank should be installed indoor for prolong service life.

Use with compatible tools.

Please read the instruction manual thoroughly.

(Deliver lead time for made-to-order product: 7-10 days for Bangkok and Metropolitan region.)

Table for Pump/ Tank Standard Installation Service Fees and Equipment

Type of Installation product	Installation Service Fee (VAT inclusive)		Standard equipment for installation (not exceeding)
Type of Installation product	New unit	Replacement of Old Unit / Relocation	VAF Electric wire	THW Ground wire	Breaker + box	PVC Water Pipe	Valve Closing-Opening	ANA Checking Valve
1. Change of Water Pump	960.-	960.-	-	-	-	-	-	-
2.Water Tank	960.-	960.-	-	-	-	-	-	-
3.Water Pump+2-System Water Tank	1,900.-	1,900.-	2x2.5 Sq.mm. 4m.	1x1.5 Sq.mm. 4m.	16 Amp. 1 set	4 m.	3 set	1 unit
4.Water Pump+3-System Water Tank	2,500.-	2,500.-	2x2.5 Sq.mm. 4m.	1x1.5 Sq.mm. 4m.	16 Amp. 1 set	4 m.	4 set	1 unit
5.Water Pump+4-System Water Tank	3,200.-	3,200.-	2x2.5 Sq.mm. 4m.	1x1.5 Sq.mm. 4m.	16 Amp. 1 set	4 m.	5 set	1 unit
6.Water Pump+Water Tank+Large Water Filter	2,500.-	2,500.-	2x2.5 Sq.mm. 4m.	1x1.5 Sq.mm. 4m.	16 Amp. 1 set	4 m.	4 set	1 unit

Service Conditions

1. Terms on Installation

In case of having an installation on any glass block, mirror, metal,wooden furniture, and any kind of stone, there will be a cost for extra installation equipment from the standard as indicated in the Extra Installation Equipment Price List.
In case of drilling a plastered ceiling, the company will drill at the area related to an installation (exclusive of paint and ceiling repair)
Working site must be a flat surface of 2-3 square meter with a height from floor to the machine not higher than 3 meters.
In case that the height from floor to the machine is higher than 3 meters, the customer must provide scaffold for installation.
In case that the installation cannot be made because the customer does not prepare installation site or does not postpone the installation appointment 2 days in advance, the company will charge travelling cost of 300 Baht/ trip.

2. Terms on Installation Equipment

Electric wiring and water piping will be exposed.
For standard installation equipment, the company will provide for actual usage only.
The company reserves the right not to deliver those unused equipment and neither to exchange nor refund in cash or discount.
In case the customer purchases extra installation equipment himself, the company will charge labor cost at 50% of the extra installation equipment cost.
** ** No labor cost charge in case of using extra installation equipment which is given together with the products. The above cost of extra installation equipment is inclusive of VAT.

3. Installation Warranty

Warranty is provided after installation for 180 days and is responsible for actual damage due to installation service but not exceeding 2 times of standard installation service fee of Home Pro.
The company reserves the right not to accept any exchange or return of products which have already been installed.
In case the customer needs relocation or re-installation of old unit, the labor fee will be charged as indicated in the service fee table.
The company will not responsible for any damage which occurs from:
* The customer hires other person to install or repair the installation work made by the company.
* The Customer hires or engages technician of the company to work beyond the scope of service as indicated in the job sheet, without an engagement through the company. If the customer is interested in using any additional service, please contact Special Service Counter or Service Center at Tel 1284.

4. Service Area

Service radiance is as follows:

* Bangkok Branches cover Bangkok and Metropolitan Bangkok.

Rungsit Branch :up to Klong 10, Amphoe Banhpra-in, Wongnoi.
Rattanathibej Branch :up to Nobprawong section.
Phetkrasem Branch :PuttamonthonSai 7.
Suvarnabhumi Branch :up to Samutprakarn Clock Tower, Crocodile Farm, Bangna-Trad km.30, Bangplee Housing.
Fashion Island Branch :up to Hua-TakayBridge, Suwintawong, Nongjok.
Rama2 Branch :up to Prasamutjaedee, Pomprajul, Mahachaimuangmai.

* Upcountry Branches

Free of charge for the first 30 kms. From the branch.
15 Baht/km for the following 31^stkms.-100^thkms.
Lump Sum service charge if exceeding 101 kms.

** The company reserves the right to change service fee and conditions without prior notice.

Extra Installation Equipment Price List
List of equipment	Unit	Equipment price+ Labor cost INC VAT.
1.VAF Electric Wire 2x2.5 Sq.mm	meter	30.-
2.THW Ground Wire 1.5 Sq.mm.	meter	10.-
3.Breaker + Box	set	150.-
4.PVC tube size 1/2"	meter	50.-
5.PVC tube size 3/4"	meter	55.-
6.PVC tube size 1"	meter	60.-
7.PVC tube size 1 1/2"	meter	70.-
8.Checking valve	unit	200.-
9.Closing-opening valve	unit	200.-
10.Three-pin plug+ box	set	200.-
11.Closing-opening Switch	set	300.-
12.Electric wire Covering rail #4 plastic	meter	70.-
13.groung (ROD) 30 cm.(not including electric wire)	point	200.-
14.Carving, punching, and wall checking (not including, color checking)	meter	300.-
15.PPR pipe size 1/2"	meter	150.-
16.PPR pipe size 3/4"	meter	200.-
17.PPR pipe size 1"	meter	250.-
18.PPR pipe Connector 1/2",3/4",1"	unit	60.-
19.PPR pipe Connector 1/2"(Threaded)	unit	200.-
20.PPR pipe Connector 3/4"(Threaded)	set	250.-
21.PPR pipe Connector 1"(Threaded)	unit	350.-
22.PPR pipe Connector 3/8"-3/4" White	meter	70.-
23.In case the customer purchases extra installation equipment himself, charge for labor cost	50% of the Equipment Price + Labor Cost

The company has a procedure to confirm appointment and survey customer satisfaction in using the service in order to improve service quality. Therefore, there may be more than one contact to the customer.

xxxx
Brand	DOS
Color	GREY
Material	PLASTIC
Width (cm)	90
Height (cm)	153.8
Depth (cm)	174
Weight (kg)	80
ColorGroup	GREY
ON THE GROUND/ UNDERGROUND	GROUND
Heating Element	25 YEARS
Head Max (m)	1000
